How to Choose a Carbon Black Grinding Machine with a Capacity of 20 Tons Per Hour

When selecting a carbon black grinding mill with a production capacity of 20 tons per hour, the key challenges lie in carbon black’s low density, excellent flowability, tendency to generate dust, and explosion risk. Equipment selection must prioritize “fully enclosed design, high wear resistance, efficient classification, and explosion-proof safety.”

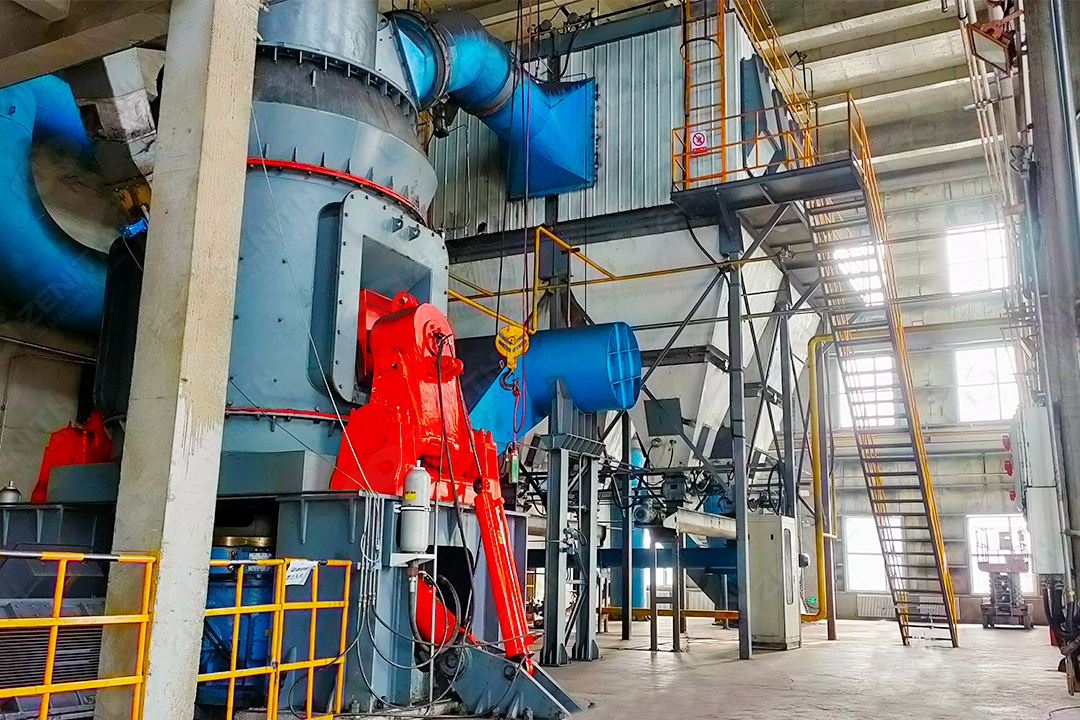

For large-scale continuous production, a vertical grinding mill optimized for the characteristics of carbon black is the preferred choice.

Key Advantages:

1.  High-Efficiency Sealing and Explosion Protection: The entire system can be strictly protected with nitrogen or inert gas, keeping oxygen content below the safety threshold (typically <8%), thereby fundamentally eliminating the risk of explosion.

2.  Wear Resistance and Anti-Adhesion: Grinding rollers, grinding discs, and pipeline linings can be made of highly polished stainless steel or ceramic materials to minimize material adhesion and buildup, facilitating easy cleaning.

3.  Precise Classification: Built-in or external high-precision turbine classifiers effectively separate target particle sizes (e.g., N330/N550 for rubber reinforcement or fine powders for specialized conductive applications), ensuring stable output.

Key Considerations and Selection Criteria:

1.  Define Product Specifications: There are numerous varieties of carbon black (e.g., for rubber, pigments, and conductive applications), with significant variations in target particle size (ranging from agglomerates in the tens of nanometers to primary particles in the micrometers), structure, and specific surface area requirements. These factors directly determine the configuration of the mill and classifier.

2.  System Integration and Safety Design:

Fully negative-pressure sealed conveying: From the front-end feeding to the end-of-line packaging, all potential dust leakage points must be eliminated.

Multiple explosion-proof measures: Equipment must be equipped with explosion-proof motors, explosion relief discs, explosion suppression systems, as well as online oxygen content monitoring and automatic nitrogen-flushing interlocks.

Intelligent control: Utilize PLC/DCS systems for real-time monitoring and automatic adjustment of key parameters such as temperature, pressure, and oxygen content.

3.  Validation and Testing: Given the complexity and high standards of carbon black grinding, it is essential to require the equipment supplier to conduct pilot testing using your raw material samples to verify production capacity, fineness, energy consumption, and the reliability of safety systems.
