Bauxite powder is made from bauxite ore through processes such as crushing, grinding and calcination. It has good refractoriness and chemical stability. As a ceramic raw material, it is used to make various refractory products and applied in the production of alumina, aluminum metal, etc., which are widely used in industrial production. With the development of intelligence and automation, the bauxite powder making process adopts advanced control systems and automated equipment. The process is energy-saving and environment-friendly, the production efficiency is continuously improved, and the finished powder is uniform and pure, meeting the needs of high-end markets.
The project was carefully designed and constructed by Zenith. After the project was put into production, its technical advantages were transformed into remarkable resource utilization results. Through the core process of independently developed grinding equipment, Zenith has promoted the utilization rate of bauxite tailings resources in the jurisdiction from the original 10% to over 90%, achieving an industrial upgrading from "low-efficiency rough processing" to "full-value deep processing". This breakthrough not only taps the potential of bauxite tailings resources, but also constructs a green processing industrial model with low input and high output.
Equipment: LM Vertical Mill
Material: Bauxite
Application: Refractory materials

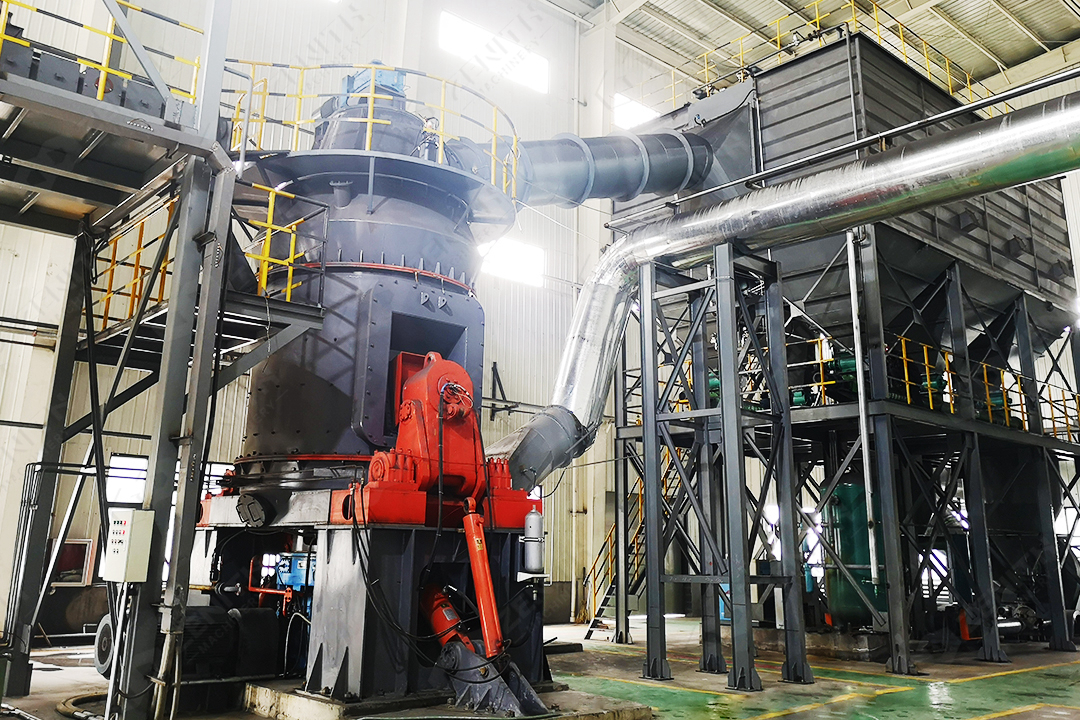

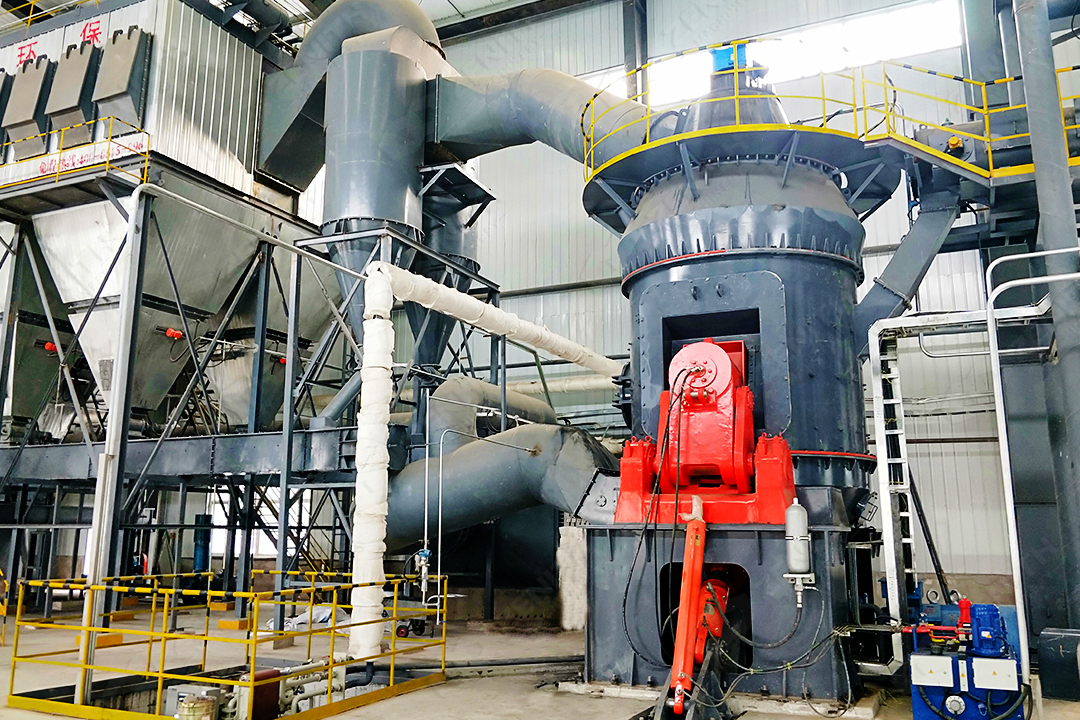

Shanghai Zenith has fully leveraged its full industrial chain service advantages in the project's production capacity construction. The lean layout of the bauxite tailings grinding production line not only improves the utilization rate of production space but also ensures tight connection between processes, effectively reducing production time waste and achieving efficient collaboration throughout the entire process. In terms of environmental protection, the project integrates low-carbon concepts and is equipped with advanced dust removal equipment, providing dual technical and environmental protection guarantees for the stable production of 300,000 tons of high-value-added bauxite-based homogeneous materials per year. The implementation of this project has truly opened up a new path of sustainable development for enhancing the value of the refractory material industry chain.
Core Equipment for Bauxite Powder Making

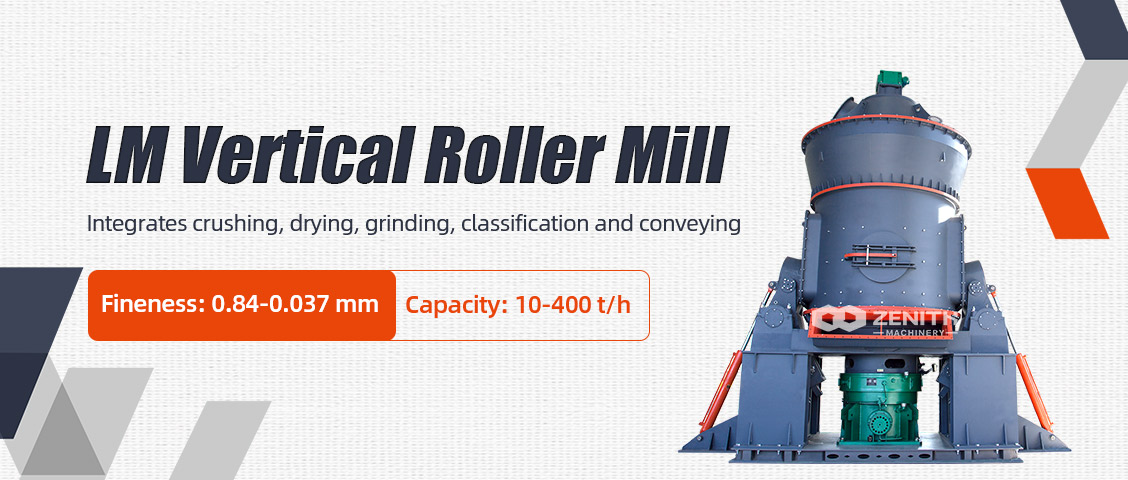

LM Vertical Grinding Mill
As the main equipment in the grinding process of bauxite tailings, LM vertical mill offers advantages such as high grinding efficiency, low power consumption, easy adjustment of product fineness, low noise, minimal dust emission, simple operation and maintenance, and low wear-resistant material consumption. The products it produces feature high purity and precise particle size control, with remarkable energy-saving and consumption-reduction advantages. With a high degree of intelligence, it enables 24-hour uninterrupted stable production. Focused on the field of solid waste powder making, the LM vertical mill provides equipment support for the resource utilization of solid waste, promoting the green, circular and low-carbon development of bauxite tailings.
01 Technological Leadership & Low Investment Cost
Integrates functions of crushing, grinding, drying, powder selection, and conveying. Compact layout allows outdoor installation, reducing investment costs.
02 Safe & Reliable Operation System
Equipped with safety and explosion-proof measures such as CO-O₂ online detection and CO₂ automatic fire extinguishing systems. Designed to meet national and industry safety specifications.
03 High Grinding Efficiency & Superior Product Quality
Features special roller and grinding table structures with hydraulic automatic pressure devices, enabling large grinding areas, high efficiency, and large output.
04 Powerful Drying Capacity
Uses hot air to convey materials. Adjusts inlet air temperature according to material moisture content, capable of drying materials with up to 15% moisture content to <1% moisture output.
05 Low Operation Cost
Roller bearings adopt forced thin-oil lubrication with hydraulic roll-turning devices for easy maintenance. Hydraulic systems allow rollers to be turned out of the machine during repairs, providing ample space and reducing downtime.
06 Comprehensive One-Stop Solution
Professional technical teams offer total package services including design, supply, and installation, providing a seamless solution for hassle-free operation.

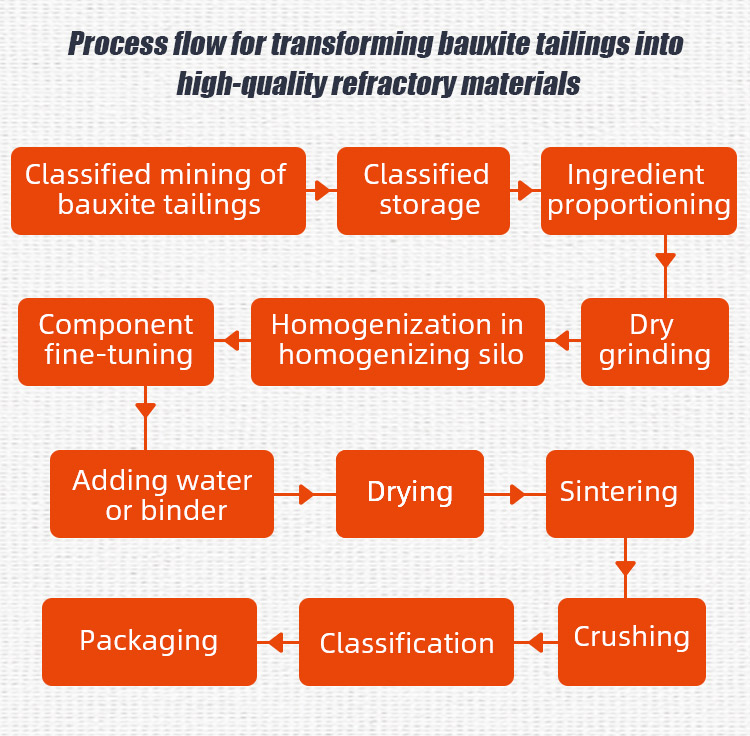

Recycling Process Flow of Bauxite TailingsFor medium/low-grade high-alumina bauxite and crushed ore, appropriate amounts of high-grade raw materials are added to produce homogenized materials with predetermined composition. The blended raw materials are then fed into Zenith vertical roller mill for dry grinding, followed by homogenization in a blending silo. Finally, water or binders are added for mixing, and the mixture is shaped using hydraulic presses or rolling ball methods. This dry process features simplicity and low moisture content after forming. Compared with natural raw materials, the products exhibit stable mineral phases, uniform composition, and consistent density.
Comprehensive Tailings ManagementScientific treatment of bauxite tailings not only promotes circular economy development in the mining industry, creating new growth opportunities for mining enterprises, but also fundamentally mitigates environmental damage caused by tailings accumulation. As a key player in the grinding equipment manufacturing industry, Zenith adheres to the belief of green and sustainable development, continuously exploring and innovating in tailings treatment to achieve a win-win situation for environmental protection and economic benefits in the mining sector.
