Abstract：Zenith has been deeply engaged in the field of grinding equipment for many years, focusing on the R&D and implementation of integrated solutions for clean coal

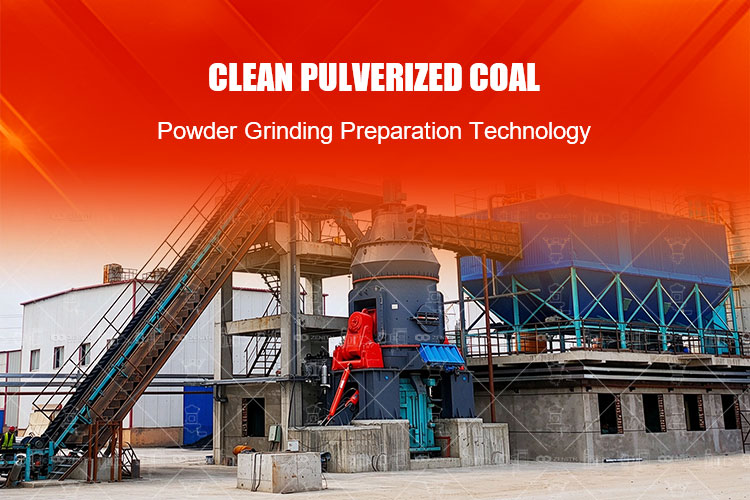

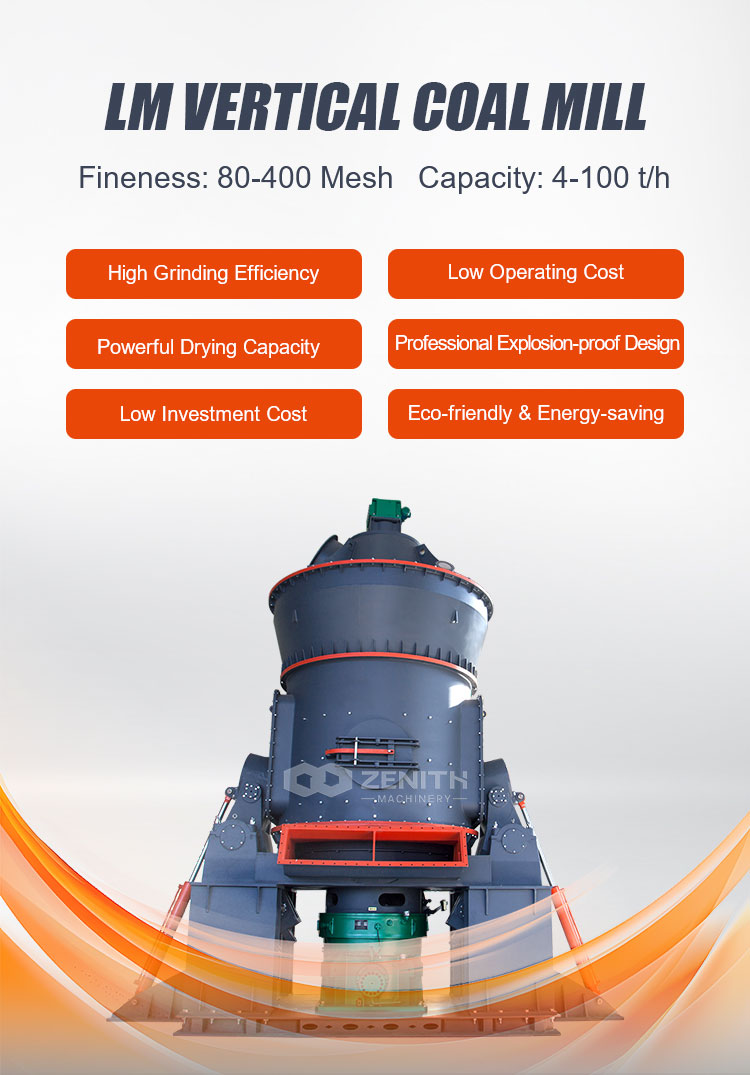

Zenith has been deeply engaged in the field of grinding equipment for many years, focusing on the R&D and implementation of integrated solutions for clean coal powder preparation. The self-developed LM Vertical Coal Mill outperforms other traditional pulverizers significantly in terms of grinding efficiency, capacity, safe production and environmental protection. It serves as ideal equipment for clean coal powder preparation, with a maximum hourly output of 100 tonnes per unit, fully meeting the demands of modern coal powder production.
In today’s industrial energy and materials sector, coal still plays an indispensable role. Its value lies not only in direct combustion but also in being processed via grinding into uniformly fine coal powder to unlock more industrial application scenarios. From thermal power generation to iron and steel smelting, from chemical synthesis to building material production, coal powder acts as the "industrial blood", quietly supporting the operation of the modern industrial system.
Clean coal powder does not refer to a specific type of coal. Instead, it is high-quality fuel produced by grinding raw coal into ultra-fine powder (typically around 200 mesh) using advanced processing technologies, followed by a series of physical or chemical treatments to endow it with features such as high reactivity, low sulfur and low ash content. It realizes the "refined utilization of coal as fuel", achieving combustion efficiency of over 98%, far superior to conventional coal-firing methods.
Whether used as raw material for coal chemical processing, for clean combustion in industrial boilers, or for blast furnace coal injection in ironmaking, the quality of coal powder directly determines the combustion efficiency, conversion rate and pollutant emission indicators of downstream production. Using professional grinding equipment to pulverize coal into fine powder can greatly increase the combustion area of coal and thus improve coal utilization efficiency. With increasingly stringent environmental policies, clean coal powder technology is developing toward high efficiency, low consumption, low carbon and environmental friendliness, and market demand keeps rising.
The Hardgrove Grindability Index (HGI) of coal generally ranges from 50 to 90. Since coal powder is flammable and explosive, and there are strict requirements on fineness, many coal powder preparation plants impose extremely high technical requirements on equipment during production.
Large-scale Design for Mass Production
Single-unit capacity ranges from 4 to 100 t/h, suitable for high-capacity coal powder projects and reducing unit investment cost.
Integrated structure cuts footprint and improves space utilization.
Safety Design to Secure Production
Equipped with professional explosion-proof devices and inert gas protection system to effectively mitigate flammability and explosion risks of coal powder.
Intelligent temperature monitoring system adjusts mill temperature in real time to guarantee stable operation.
Ultra-low Energy Consumption, Remarkable Cost Reduction & Efficiency Improvement
Adopts advanced grinding principle and hydraulic loading system to lower comprehensive energy consumption.
Since the grinding rollers do not come into direct contact with the grinding table during operation, and both rollers and liners are made of premium materials, the equipment features long service life and low wear.
High Drying Efficiency, Suitable for Multiple Coal Types
Hot air introduced into the mill from outside comes into full and repeated direct contact with powdered materials inside the mill, delivering strong drying capacity. By adjusting hot air temperature, the mill can process raw coal of varying hardness and moisture content.
Easy Operation & Maintenance, Reliable Performance
Equipped with an automatic control system for remote control and simple operation.
A limiting device prevents direct contact between roller sleeves and grinding table liners, avoiding destructive impact and severe vibration.
The maintenance cylinder enables flipping of the rocker arm, allowing fast and convenient replacement of roller sleeves and liners to reduce downtime losses.
Stable Product Quality, Uniform Particle Size
Materials stay in the mill for a short residence time, making product fineness and chemical composition easy to monitor and control. It reduces regrinding and stabilizes product quality.
Dynamic Classification System: Built-in rotor classifier separates qualified coal powder and coarse particles in real time to ensure uniform particle size.
Upgraded Environmental Protection, Practicing Green Concepts
Full negative-pressure operation system paired with high-efficiency dust collectors achieves low dust emissions and meets national ultra-low emission standards.
Low-noise design optimizes the working environment and helps enterprises build green and intelligent factories.
Zenith has successfully served hundreds of coal powder preparation enterprises. We have numerous well-established benchmark projects for processing bituminous coal, anthracite and lignite. Drawing on extensive hands-on project experience, we thoroughly understand pain points under various working conditions. We can customize complete powder-making processes and equipment packages for enterprises according to different industries, coal qualities and capacity requirements.
