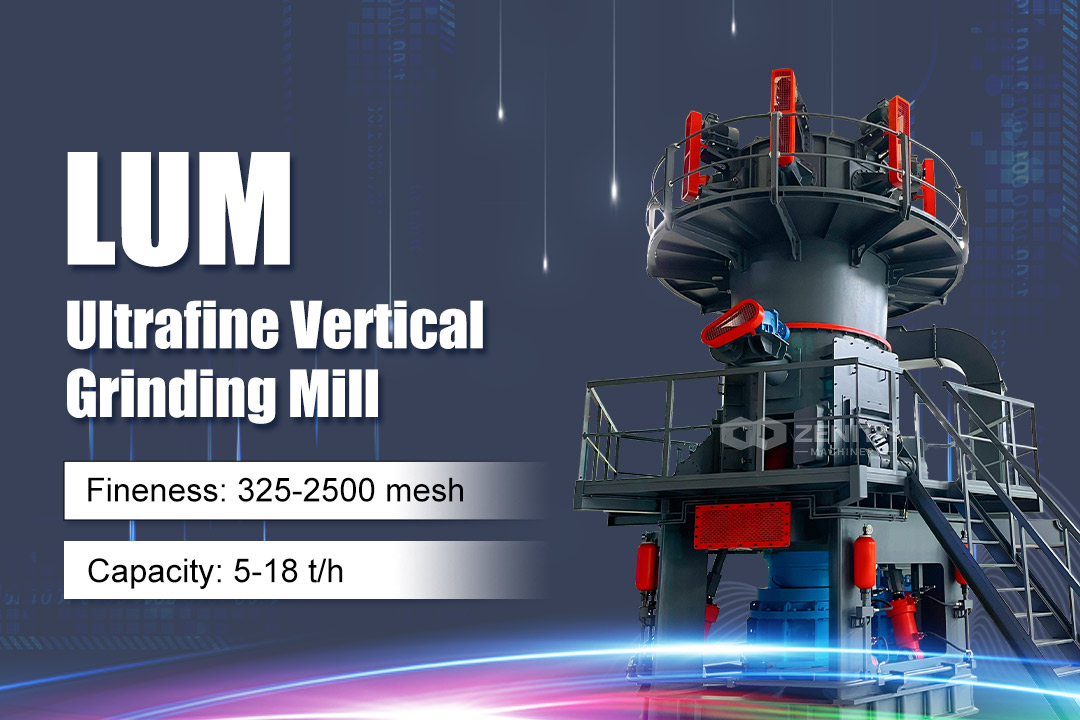

Performance Advantages of the Ultra-Fine Vertical Grinding Mill

As a core piece of equipment in modern powder processing, the ultra-fine vertical mill demonstrates outstanding performance advantages over traditional grinding equipment in multiple dimensions. It has become the preferred choice for producing high-value-added micropowders in fields such as minerals, chemicals, and metallurgy.

It achieves high grinding efficiency with significantly reduced energy consumption. Employing the fluidized bed grinding principle, materials are crushed between grinding discs and rollers. Energy is directly applied to the material layer, eliminating the extensive ineffective collisions and friction between steel balls, materials, and liners found in ball mills. This significantly enhances crushing efficiency, reducing system power consumption by 20%-40% and delivering substantial energy savings.

Products feature fine particle size, uniform distribution, and superior quality. The equipment integrates crushing, classification, and conveying. Its built-in high-efficiency dynamic classifier separates and collects qualified fine powder in real time, effectively preventing over-grinding. By adjusting the classifier speed, the finished product fineness can be conveniently controlled. Particle size can be flexibly adjusted between D97=5-45 microns, with a concentrated distribution and uniform particle morphology, enhancing the performance of downstream products.

High system integration with compact footprint and low noise. The vertical structure features a compact design, completing the entire process from lump feedstock to finished powder within a sealed system. This significantly reduces floor space requirements and infrastructure costs. Operation is smooth with minimal vibration, and workplace noise levels are substantially lower than traditional ball mills, meeting modern factory standards for environmental protection and occupational health.

Highly intelligent with stable and reliable operation. Equipped with a PLC automatic control system, it enables one-button start/stop, interlock control, remote monitoring, and fault diagnosis. Rollers utilize hydraulic pressure or elastic buffering devices to adapt to fluctuations in material hardness. Automatic roller lifting protection activates upon encountering non-crushable objects, achieving an equipment operating rate exceeding 95%. Maintenance is simple, and operating costs are low.

Outstanding environmental performance. The entire system operates under negative pressure with minimal dust leakage points. Paired with a high-efficiency pulse dust collector, emission concentrations fall far below national environmental standards, achieving clean production.

In summary, the ultra-fine vertical grinding mill, with its core advantages of high efficiency, energy savings, superior product quality, and intelligent environmental protection, is powerfully driving the powder industry's transformation and upgrading toward refinement and greening.
