PMD New Generation Permanent-Magnet Direct Drive Intelligent European Trapezium Mill makes its spectacular debut, pioneering a new trend of technological upgrading in the grinding mill industry. This innovative model takes the lead in applying the permanent magnet direct drive motor to the pendulum grinding mill field, breaking the limitations of traditional transmission modes in one fell swoop and achieving seamless integration of the power system and intelligent control. Compared with traditional Raymond mills, its energy efficiency jumps by 30%, helping enterprises drastically cut down production and operation costs and gain higher economic benefits.

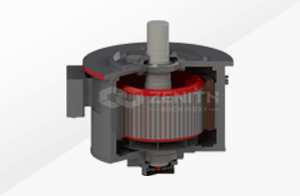

Delivers strong and stable power output, upgrades equipment reliability, achieves 15% overall energy saving, and realizes cost reduction & efficiency improvement in one step.

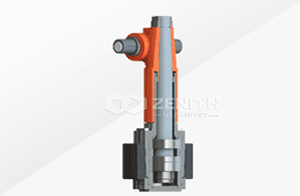

Built-in intelligent lubrication system enables real-time online lubrication for the classifier, main unit and all motors. No shut-down for maintenance is needed, supporting enterprises to achieve continuous production and realize more efficient cost reduction and efficiency improvement.

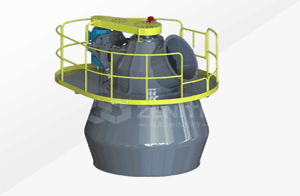

The classifier is upgraded with an innovative structure, optimized in both sealing performance and air flow rate. It directly boosts classification efficiency and precision, facilitating the production of high-quality powder.

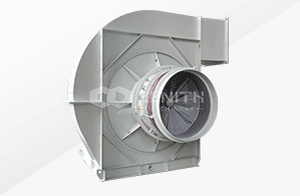

The system comes with a brand-new high-performance fan, which directly increases pneumatic energy efficiency by 15%. Compared with traditional fans, it also cuts electricity costs by 8%-10%, achieving cost reduction and efficiency improvement in one step.

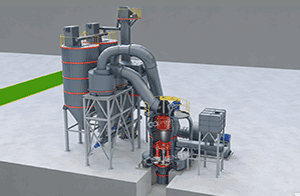

The system is equipped with a multi-point operation status monitoring module, which enables early fault warning, ensures stable equipment operation, effectively improves finished powder quality, and helps enterprises enhance market competitiveness.

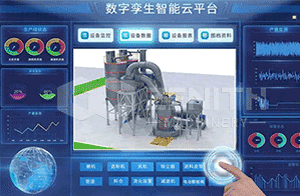

The system integrates an intelligent control module, which collects and deeply analyzes equipment operation data in real time, and enables one-click remote control via mobile APP.
| Model | PMD150 | PMD185 | PMD198 | PMD218 |
|---|---|---|---|---|
| Motor of Main Mill (KW) | 90-110 | 160-185 | 220-250 | 280-315 |
| Motor of Blower (KW) | 90-132 | 185-200 | 220-250 | 280-315 |
| Motor of Separator (kW) | 18.5-22 | 30-37 | 45-55 | 55-75 |
| Main Mill Rotating Speed (r/min) | 93-105 | 80-90 | 73-85 | 56-70 |
| Max input Size (mm) | 35 | 40 | 45 | 50 |
| Fineness (mm) | 1.6-0.045mm, finest 0.038mm | |||
| Capacity (t/h) | 6-25 | 10-38 | 15-45 | 18-55 |
This equipment boasts a wide range of applications, which can meet the processing needs of industries such as building materials, metallurgy, electric power, chemical engineering, new energy and new materials, as well as the powder production of large and medium-sized non-metallic mines. The applicable materials include limestone, calcite, dolomite, marble, gypsum, quicklime, ground calcium carbonate, desulfurized limestone, magnetic rare earth materials, bentonite, kaolin, bauxite, barite, clean pulverized coal, petroleum coke, etc. Requirements for materials: Mohs hardness ≤ 7, moisture content ＜ 6%, and the materials shall be non-flammable and non-explosive.
